  • Schneider A9D05825 RCBO C 25A 30mA 10kA

Schneider A9D05825 RCBO C 25A 30mA 10kA

(A9D05825)

Schneider A9D05825 is a white-finished Acti9 plug-on residual current circuit breaker with overload and overcurrent protection. With an AC network type and 50/60 Hz network frequency, this circuit breaker is 1P+Ns and has a distribution CB use. This device has a 25A rated current and an earth-leakage sensitivity of 30mA.

  • £66.64

Description
Product RCBO
Dimensions
Depth 72 mm
Height 110 mm
Width 18 mm
Features
Ingress Protection IP20
Mounting DIN Rail
Pole Configuration SP+N
Short Circuit Rating 10 kA
General
Standards BS EN 61009-1 IEC 61009-1 IEC 61009-2-2
Unit Weight 0.156 kg
Warranty 1.5 Years
Technical Data
Current Rating 25 A
Voltage 240 V

Related Products

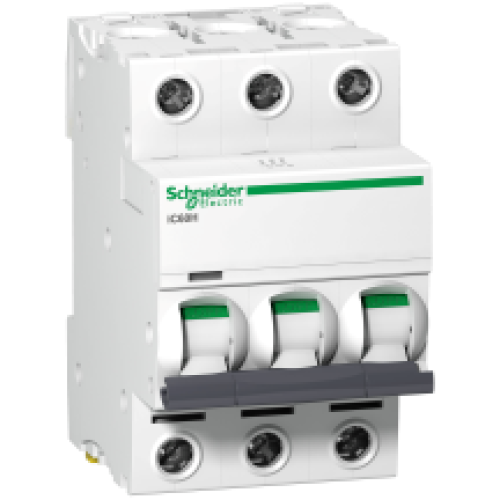

Schneider A9F53350 iC60H MCB TP B 50A
