  • Schneider A9D05816 RCBO C 16A 30mA 10kA

Schneider A9D05816 RCBO C 16A 30mA 10kA

(A9D05816)

Acti9 plug-on residual current circuit breaker with overload, overcurrent protection, and a white finish is the Schneider A9D05816. This circuit breaker is one pole, AC network type, 50/60 Hz network frequency, and it has a distribution CB application. With a 16A rated current, this device has an earth-leakage sensitivity of 30mA.

  • £63.78

Description
Product RCBO
Dimensions
Depth 72 mm
Height 110 mm
Width 18 mm
Features
Ingress Protection IP20
Mounting DIN Rail
Pole Configuration SP+N
Short Circuit Rating 10 kA
General
Standards BS EN 61009-1 IEC 61009-1 IEC 61009-2-2
Unit Weight 0.156 kg
Warranty 1.5 Years
Technical Data
Current Rating 16 A
Voltage 240 V

Related Products

Schneider SEA91253N Switch Disconnector 3P 125A

Schneider SEA91253N Switch Disconnector 3P 125A

The Schneider SEA91253N Switch Disconnector 3P 125A is a high-quality switch disconnector designed f..

£97.38

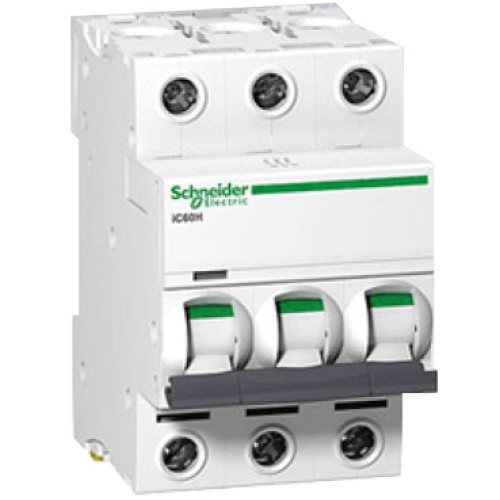

Schneider A9F55350 iC60H MCB TP D 50A

Schneider A9F55350 iC60H MCB TP D 50A

The Schneider A9F55350 is a Type D Miniature Circuit Breaker (MCB) with three poles, 50 amps, and 10..

£91.10

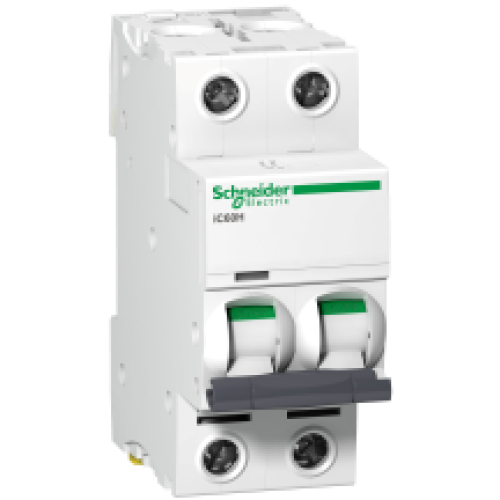

Schneider A9F55263 iC60H MCB DP D 63A
