1. Solar Site Assessment

The first step in designing and installing a solar system is to perform a site assessment to evaluate the potential for solar energy generation at the location.

Key factors to consider:

• Roof & Shade Orientation and Tilt: In the Northern Hemisphere, the best orientation for solar panels is typically south-facing, while in the Southern Hemisphere, they should face north. The angle of tilt also influences energy generation, with an optimal tilt typically matching the latitude of the location.
• Roof Condition: Ensure that the roof is structurally sound and able to support the weight of the solar panels. If the roof needs repairs, it may be better to address that before installation.
• Shading: Evaluate shading from trees, buildings, or other obstructions. Even partial shading on a solar panel can significantly reduce its efficiency. Tools like solar pathfinders or shade analysis software help assess shading patterns throughout the year.
• Available Space: Determine how much space is available for solar panel installation. This could be on the roof, on the ground (if space permits), or on a solar carport or other structures.

2. Energy Consumption Assessment

Understanding how much energy the building or facility consumes is critical to sizing the solar system appropriately.

• Current Energy Use: Review utility bills to understand the energy consumption patterns, especially monthly usage in kilowatt-hours (kWh). This helps estimate how much solar power is needed to offset or reduce electricity costs.
• Peak Demand: Identify periods of high energy demand (e.g. air conditioning in the summer) to ensure the system is adequately sized to meet these peaks.
• Energy Efficiency Measures: It's essential to optimize energy efficiency first before installing solar panels. Implementing energy-saving measures like LED lighting, improved insulation, and energy-efficient appliances can reduce the size of the solar system required.

3. Solar System Design

Once the site and energy needs have been assessed, the next step is designing the solar system. The design should match the specific needs and constraints of the site.

Key Components:

• Solar Panels: Choose the type of solar panels (monocrystalline, polycrystalline, or thin film) based on efficiency, cost, and available space. Monocrystalline panels tend to be the most efficient but can also be more expensive.
• Inverter: The inverter converts the direct current (DC) electricity generated by the solar panels into alternating current (AC) electricity, which is used by most household appliances. There are different types of inverters, including string inverters, microinverters, and power optimizers. The choice depends on factors like system size, shading, and budget.
• Battery Storage (Optional): If the goal is to store energy for use at night or during periods of low sunlight, a battery storage system can be added. Batteries like lithium-ion or lead-acid store excess energy generated during the day for later use.
• Mounting System: The mounting system holds the solar panels in place, whether they are installed on the roof or on the ground. Roof-mounted systems are the most common, but ground-mounted systems may be more suitable for areas with insufficient roof space or high shading.

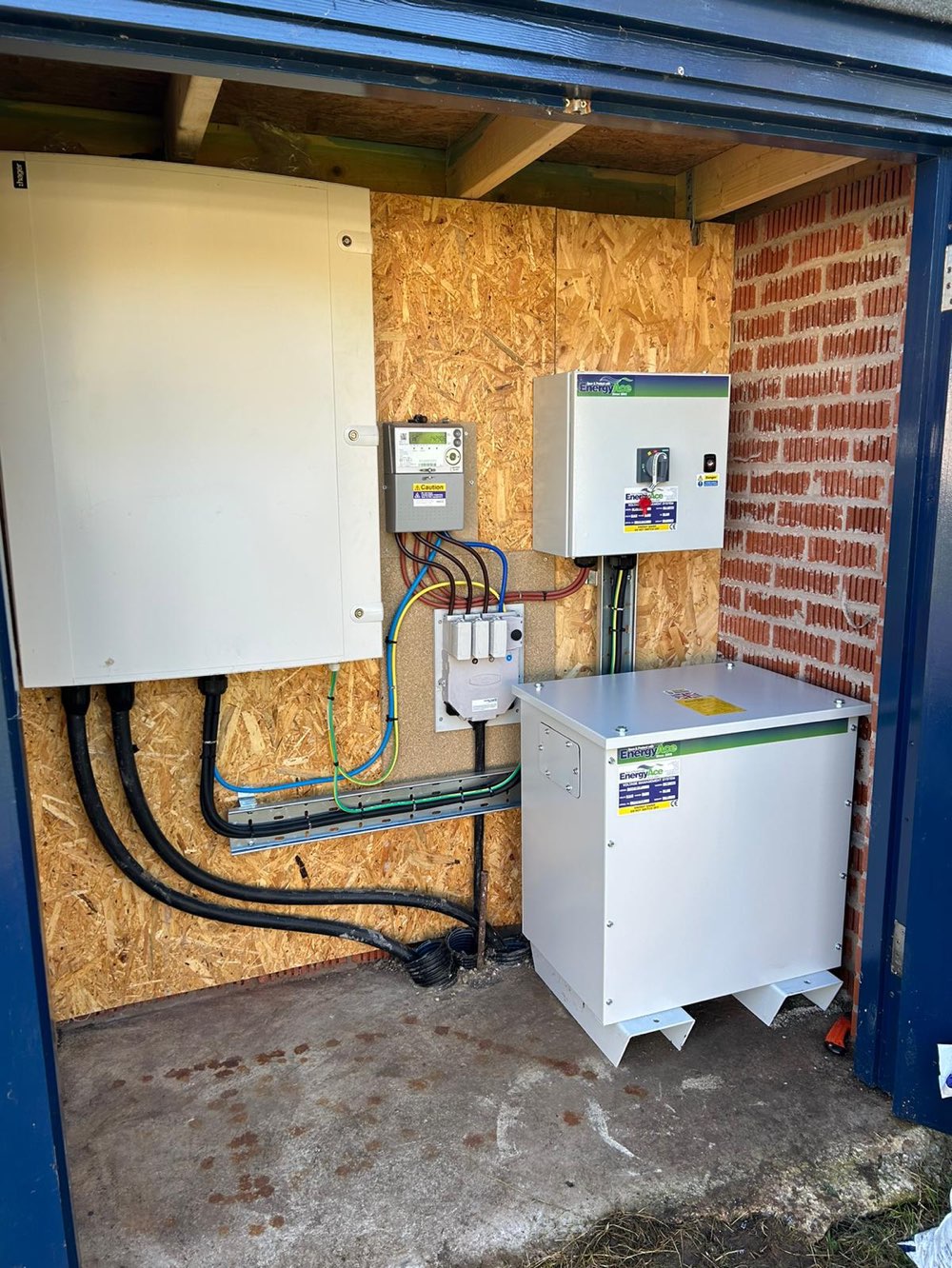

• Wiring and Electrical Components: These include wiring for connecting the panels to the inverter and from the inverter to the electrical panel. Other components like disconnect switches, fuses, and junction boxes are also necessary to ensure safe operation.

4. System Sizing and Configuration

Once the components are selected, the system must be sized based on energy needs and available space. This involves:

• Calculating Solar Panel Output: Based on panel wattage and available sunlight hours, the total number of panels and their output capacity (measured in kW) must be calculated.
• Determining Battery Size: If storage is part of the system, the battery capacity must be sized to meet energy needs during off-sunlight hours. This will depend on the desired autonomy and peak consumption.

5. Permitting and Approvals

Before installation begins, the system will need to be approved by local authorities. The permitting process varies depending on location, but typically includes an application to the DNO:

• Building Permits: To ensure that the installation complies with local building codes and safety regulations.
• Electrical Permits: To ensure the electrical system meets safety standards.
• Utility Approval: If the system will be connected to the grid, approval from the local utility company is required. They will verify the design and may require a net metering agreement (where excess energy is fed back into the grid in exchange for credits or compensation).

7. Testing and Commissioning

Once the installation is complete, the system is tested to ensure everything is functioning correctly. This includes:

• System Testing: Check the voltage, current, and output of the solar panels and inverters to ensure they match design specifications.
• Grid Connection: If the system is grid-tied, the utility company may conduct an inspection before enabling the connection to the grid. The system may also need a grid meter to measure the amount of energy being exported back to the grid (if applicable).
• Battery Charging (If Applicable): If battery storage is included, ensure that the batteries are charging properly and holding charge as expected.

8. Monitoring and Maintenance

After installation, it's important to monitor the system's performance to ensure its operating optimally.

• Monitoring Systems: Many solar systems include remote monitoring via mobile apps or web platforms, which allow homeowners or businesses to track energy production and identify issues.
• Routine Maintenance: Solar systems generally require minimal maintenance. Regular cleaning of the panels to remove dirt or debris is important for maximum efficiency, especially in dusty or snowy areas. Inverters may also need periodic inspection or servicing.
