  • Schneider SEA9BPN12516S6 Acti9 Isobar B P Split Metered Distribution Board 16 + 6 ways TP+N

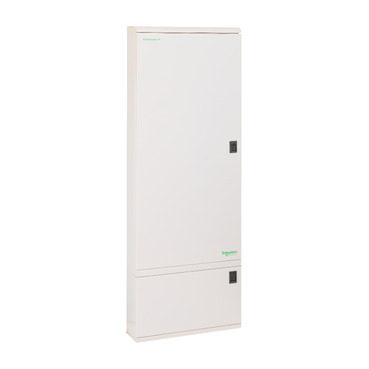

Schneider SEA9BPN12516S6 Acti9 Isobar B P Split Metered Distribution Board 16 + 6 ways TP+N

(SEA9BPN12516S6)

Suitable for use with standard Schneider Electric circuit protection devices
Isobar disconnection ensuring unused outgoing ways are isolated
Non removable interlock to prevent operation unless an outgoing device is fitted
Fully encapsulated busbar system

This Acti9 Isobar B P product is a split metered distribution board, up to 125A. (e.g. circuit breakers, Arc fault detection devices, and residual current devices) associated with one or more outgoing circuits fed from incoming circuits, together with terminals for the neutral and circuit protective conductors.

  • £3,084.36

Product Datasheet
Download Datasheet
Description
Product Distribution Board
Dimensions
Depth 139 mm
Height 1290 mm
Width 470 mm
Features
Door/Lid Type Solid
Ingress Protection IP3X
Mounting Surface
Pole Configuration Four Pole (4P)
Rated Voltage 400 V
General
Standards BS EN 61439-3
Unit Weight 16.2 kg
Warranty 1.5 Years
Material & Finish
Body Material Steel
